Dryer Timer and Control Board Issues: Diagnosis and Fix Guide

If your dryer stopped mid-cycle, or the timer knob spins but nothing happens, you’re in the right place. These are two of the most common calls we get. And most of the time, the fix is simpler than you’d expect.

This guide walks you through everything: spotting the problem, testing the right parts, and replacing them yourself when it makes sense. By the end, you’ll know what’s actually wrong and what to do next.

Key Takeaways

• Interface Logic: Use the interface as your first clue, as mechanical dials usually signal timer issues while digital screens and buttons point toward a faulty control board.

• The Simple Stuff: Inspect the plastic knob for cracks and test the thermal fuse before you commit to buying expensive electronic parts that you might not actually need.

• Multimeter Testing: A multimeter reading between 2,000 and 3,000 ohms confirms a healthy timer motor, whereas a reading of zero or infinity means the component is officially toast.

• Safety First: Protect yourself by completely unplugging the power cord and turning off the gas supply valve before you start poking around the internal components.

• Visual Cues: Trust your eyes and nose, as visible burn marks, swollen capacitors, or a smoky scent on the board mean the electronics are definitely beyond repair.

• Model Sourcing: Always match your specific model number prefix to the actual manufacturer to avoid the headache of ordering parts that look right but won't fit.

• Power Protection: Safeguard your sensitive new electronics with a surge protector, especially if you live in an area prone to power fluctuations during summer heat waves.

• Repair vs. Replace: Weigh the cost of the fix against the age of the machine, since sinking several hundred dollars into a 12-year-old dryer is rarely a winning bet.

What a Dryer Timer and Control Board Actually Do

Most people haven’t considered what happens inside a dryer when turning the knob. Knowing a bit helps with diagnosis.

The timer is a small motor that rotates slowly through your selected cycle. As it turns out, it opens and closes electrical contacts that tell the dryer when to heat, when to tumble, and when to stop. That clicking sound when you turn the dial? Those are the cam contacts stepping through each position.

Digital timers work on the same idea but use electronic signals instead of physical rotation. They’re usually built more closely into the control board, which is why diagnosing them takes a slightly different approach.

The control board is the decision-maker. It collects signals from sensors like the moisture sensor, door switch, and thermostat, then tells the motor, heat source, and display what to do. On newer machines, it also handles error codes, cycle options, and automatic shut-off.

Older dryers with dial knobs rely mainly on the timer. On newer digital models, the control board is in charge. This similarity in symptoms makes distinguishing failures harder.

Quick Checks First: Try These Before Anything Else

Before you take anything apart, run through these in two minutes. They catch the easy problems fast.

Check the knob itself. Pull it off and look at the shaft connector. A cracked or stripped knob will spin freely without actually turning the timer underneath. This is a cheap fix that’s easy to miss.

Look for a reset button. Some dryer models have a small reset button on the motor or just behind the front panel. Press and hold it for about five seconds. If the dryer runs normally after that, the problem was a tripped thermal limiter (a safety device that stops the dryer from overheating), not the timer or board.

Check the thermal fuse. This one trip more often than people realizes. The thermal fuse is a safety component that cuts off power if the dryer overheats. If the fuse is blown, the dryer may not start at all, and the timer won’t advance either. A blown thermal fuse is inexpensive to replace and worth ruling out before you go further.

Pro Tip: Is your timer really broken?

If your dryer isn’t heating at all, the timer may just be waiting for a “heat reached” signal that never comes. On many Whirlpool and Maytag dryers, the timer only advances when the cycling thermostat closes to confirm heat. If your thermal fuse is blown, the dryer won’t heat, and the timer won’t move. Check the thermal fuse first. It costs a few dollars and takes ten minutes to test.

What You’ll See: Common Symptoms

• The timer knob turns, but the cycle doesn’t advance. The drum runs and may even heat up, but the timer doesn’t advance on its own. This usually points to a failed timer motor. On digital models, the cycle countdown may freeze at the same number.

• The dryer won’t start at all. No sound, no movement, nothing. A dead control board or a timer stuck in the off position can both cause this. But check the door switch and thermal fuse first. Those fail more often.

• The dryer keeps running past the end of the cycle. If it never shuts off on its own, the timer cam contacts may be stuck closed. On digital models, a stuck relay on the control board causes the same thing.

• The dryer stops mid-cycle. It starts fine, runs for a few minutes, then cuts out. This can mean a timer motor overheating and stalling, or a control board intermittently losing power.

• Buttons don’t respond, or the display is frozen. If pressing buttons does nothing, or the screen is blank or stuck, that’s almost always the control board. The timer has nothing to do with the display.

• Clothes take much longer than usual to dry. Most people blame the heating element, but a slow timer motor drawing low voltage can be the real cause.

• You see burn marks or smell something near the console. Stop. Don’t run the dryer again. Visible discoloration, melted plastic, or a burning smell near the control panel are clear signs of control board damage.

Timer vs. Control Board: How to Tell the Difference

Here’s a simple way to think about it.

• If your dryer has a dial knob and the cycle doesn't advance, runs too long, or stops early, check the timer first.

• If your dryer has a digital display and the problem involves buttons not working, error codes, or a blank screen, start with the control board.

• Some symptoms can come from either one. A dryer that won’t start or stops mid-cycle could be a timer problem or a board problem. In those cases, the tests in the sections below will tell you for sure.

• The one symptom that almost never comes from the timer: anything involving the display or buttons. If the control panel feels completely dead, that’s a board problem until you prove otherwise.

• If the drum itself isn’t moving at all, rather than just the timer not advancing, that’s a separate issue. A dryer motor or belt problem behaves differently from a timer or board failure.

Tools You’ll Need

You don’t need a full workshop. Here’s what gets you through every test in this guide.

• A basic digital multimeter is the most important tool. You also need a flathead screwdriver, a Phillips screwdriver, and needle-nose pliers for removing wire connectors.

• Pull out the wiring diagram for your specific model before you start. It’s usually on a sticker inside the door frame or behind a panel. If you can’t find it, enter your model number on the manufacturer’s website, and it will be there.

• One thing most guide skip: take photos with your phone before disconnecting anything. When you’re reconnecting eight wires that all look the same, that photo will save you real time.

Safety First

Unplug the dryer. Pull the power cord from the wall completely. Don’t just turn it off at the controls. Components inside can still hold a charge when the dryer is off.

Gas dryer? Shut off the gas valve. Find the shutoff valve on the gas supply line behind or beside the unit. Turn the valve handle so it sits perpendicular to the pipe. This cuts the gas supply. Don’t open any panel on a gas dryer without doing this first, every single time.

Let it cool. If the dryer was running recently, give it at least 15 minutes before reaching inside. The heating element and drum area stay hot longer than you’d expect.

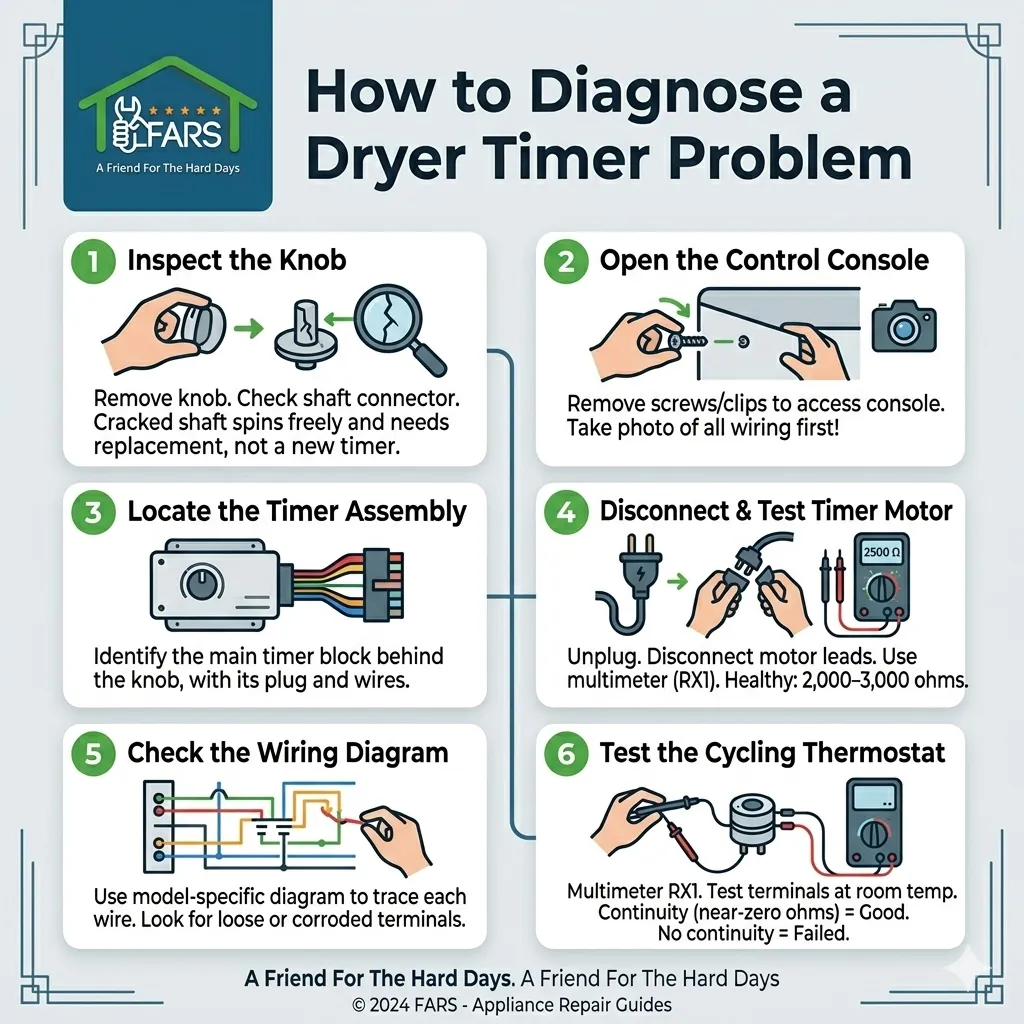

How to Diagnose a Dryer Timer Problem

Step 1: Inspect the Knob

Remove the knob and inspect the shaft connector closely. A cracked plastic shaft will make the knob spin without engaging the timer underneath. If this is the problem, you just need a new knob, not a new timer.

Step 2: Open the Control Console

The console is usually accessed by removing screws at the back edge of the top panel or by releasing clips along the front edge. Take a photo of all wiring before you touch anything.

Step 3: Locate the Timer Assembly

The timer is a small rectangular or cylindrical unit attached to the back of the knob shaft. You’ll see a wiring harness plugged into it with several colored wires.

Step 4: Disconnect the Wires and Test the Timer Motor.

This step tells you definitively whether the timer motor (the part that turns the cycle dial automatically) has failed.

Unplug the dryer if you haven’t already. Disconnect the timer motor leads from the harness (the bundle of wires that powers the motor). Set your multimeter, a device that measures electrical resistance, to RX1.

Place one probe on each motor terminal (the metal connection points on the motor). A healthy timer motor reads between 2,000 and 3,000 ohms—a unit that measures electrical resistance.

If you get zero, infinity, or a reading well outside that range, the timer motor is bad, and the assembly needs to be replaced.

Step 5: Check the Wiring Diagram

Using your model-specific diagram, trace each wire from the timer to its destination. A single loose or corroded terminal can make the timer appear completely dead when the motor itself is fine.

Step 6: Test the Cycling Thermostat

Keep your multimeter on RX1. Disconnect the wires from the thermostat (a part that controls dryer temperature), then touch the probes to both terminals. At room temperature, a working thermostat shows near-zero ohms of resistance, indicating continuity (an unbroken electrical path). No continuity at room temperature means the thermostat has failed and is blocking the signal the timer needs to advance.

How to Diagnose a Dryer Control Board Problem

Step 1: Read Any Error Codes First

Write down whatever code is showing on the display. Most manufacturers publish a full list in the owner’s manual or on their website. Many error codes point to a sensor or switch, not the board itself. Read the code before assuming the board is bad.

Step 2: Look for Visible Damage

With the dryer unplugged and the console open, inspect the board under good lighting. Look for brown or black burn marks on the circuit board surface, swollen or cracked capacitors, melted relay components, or corrosion around solder points. Any of these means the board needs to be replaced.

Step 3: Check Every Wire Connection

Before you order a new board, gently tug each connector plugged into it. A loose wire harness is one of the most common causes of intermittent failures that look exactly like a dying board. Push each connector firmly back in and test the dryer again.

Step 4: Test Relay Continuity on the Board

Set your multimeter to the continuity setting. Test the input and output terminals on each relay switch on the board. A relay that shows no continuity when it should be active has failed and can’t supply power to the motor or heat source.

Step 5: Check the Relay Board Separately

Some dryer models use a separate relay board between the main control board and the motor. Testing these relays individually is worth doing because replacing just the relay board costs significantly less than replacing the full control board.

Step 6: Test the Door Switch and Moisture Sensor

A bad door switch prevents the control board from receiving the start signal, which produces symptoms identical to a dead board. Test the door switch for continuity with the door closed.

Also, check the moisture sensor bars inside the drum. These are two small metal strips near the front of the drum opening. Dryer sheet buildup on these bars causes the board to cut the cycle short before clothes are actually dry. Wipe them with rubbing alcohol on a cloth before assuming the board has failed.

If your display shows an error code but the board looks fine, start with the door switch and moisture sensor. These two parts account for most error codes that appear to be board failures, and both cost far less to replace than a control board.

How to Fix or Replace a Dryer Timer

• Should you repair or replace? If the timer motor fails the multimeter test, replace the full timer assembly. Repairing the motor inside the timer isn’t practical at the home repair level. If the dryer is 12 years old or older, honestly consider whether the repair cost makes sense compared to buying a new machine.

• Removing the Old Timer. Unplug the dryer. Take a phone photo of all the wires connected to the timer. Use needle-nose pliers to pull the wire connectors off one at a time. Remove the mounting screws holding the timer to the console bracket and pull the assembly straight out.

• Installing the New Timer. Fit the new timer into the bracket and secure the mounting screws. Reconnect each wire exactly as shown in your photo. Reattach the knob shaft, reassemble the console, plug in the dryer, and run a test cycle.

• Finding the Right Part. Look for the model number on the sticker inside the door frame or on the back panel. Use that number on the manufacturer’s website or a parts supplier to find the exact compatible timer. Don’t use a close match. Dryer timers are model-specific, and the wrong one can cause electrical damage.

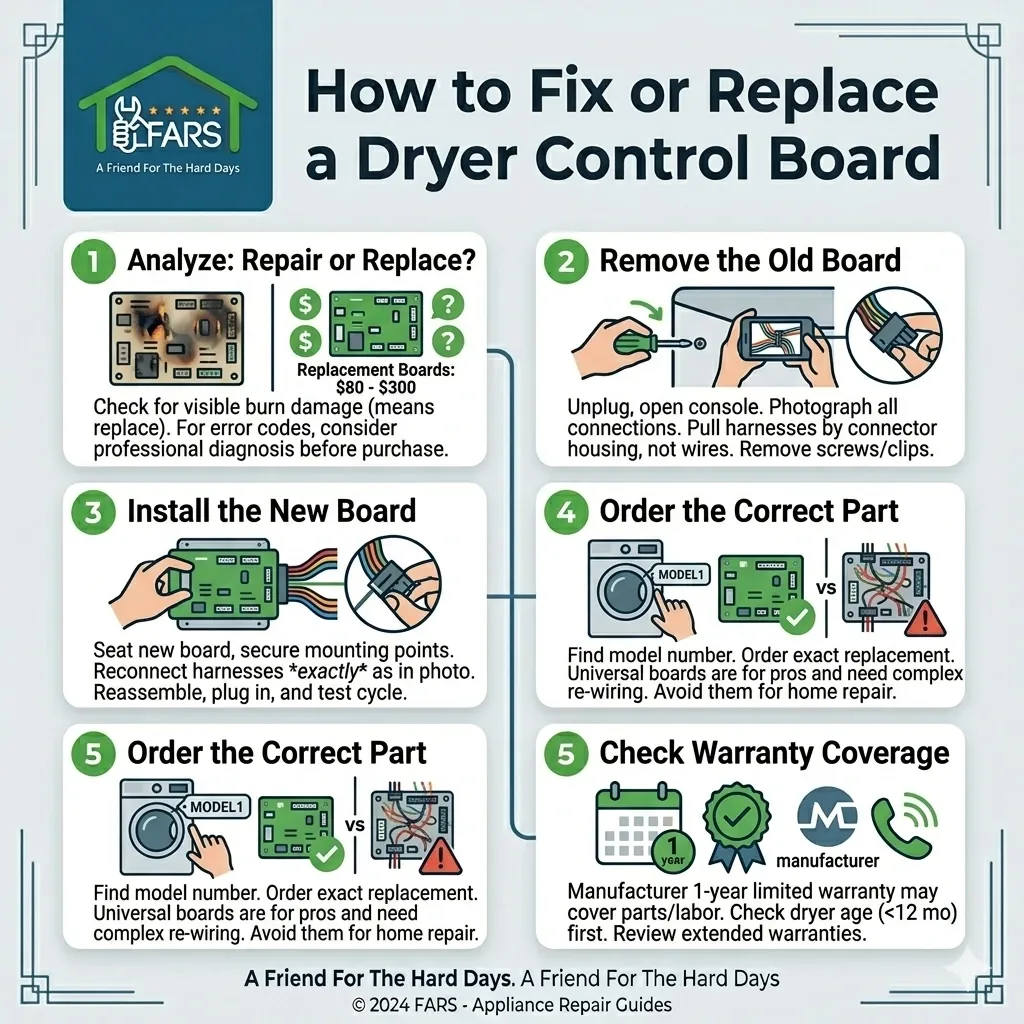

How to Fix or Replace a Dryer Control Board

• Should you repair or replace? Visible burn damage means replace, not repair. If the board looks clean but error codes keep coming back, a professional diagnostic is worth the call before spending on a new board. Replacement boards typically run between $80 and $300, depending on brand and model.

• Removing the Old Board. Unplug the dryer and open the console. Take a photo of each wire harness connection. Disconnect each harness by pulling on the connector housing, never the wires themselves. Remove the mounting screws or release the clips holding the board in place, and slide it out carefully.

• Installing the New Board. Seat the new board in the console frame, secure all mounting points, and reconnect every harness exactly as shown in your photo. Put the console back together, plug in the dryer, and run a test cycle to confirm everything is working.

• Model-specific vs. universal boards. Always go model-specific. Universal control boards exist, but they’re built for commercial shops that rebuild boards from scratch. For a home repair, a universal board requires knowledge of rewiring well beyond this guide. Use your model number and order the exact replacement.

• Warranty coverage. Most manufacturers include a one-year limited warranty on parts and labor. If your dryer is under 12 months old, contact the manufacturer before buying any parts. Some retail extended warranties cover control boards separately, so check that too.

Brand-Specific Notes

GE Dryers

GE electric dryer timers are among the most commonly replaced parts in residential appliance repair. The timer knob is a frequent failure point because the plastic shaft connector cracks over time, causing the knob to spin without engaging the timer underneath.

The wiring diagram is usually on a sticker inside the door frame. If it’s missing, GE Appliances will show it when you enter your full model number on their website. Most GE electric dryer timer parts fall under the WE4M part series.

Whirlpool Dryers

The most common complaint on Whirlpool dryers is that the timer doesn’t advance on the Normal cycle setting, or the knob becomes stiff as the cam contacts wear down.

One important note: Whirlpool models built after 2015 largely moved away from mechanical timers to digital control boards. Check your model year before ordering a mechanical timer for a newer Whirlpool.

Maytag Dryers

On Maytag Bravos dryers, the control board is often mounted horizontally at the top of the machine. This position makes it more vulnerable to moisture damage, particularly if the dryer sits in a damp basement or utility room. If you’re getting intermittent failures and error codes on a Bravos model in a humid environment, check the board for signs of corrosion around the solder points before assuming it has failed electrically.

If the problem is on the washer side of a stacked or paired Maytag unit rather than the dryer, our washing machine repair guide covers common Maytag washer and dryer problems across all model series.

Kenmore Dryers

Kenmore dryers are built by Whirlpool, Electrolux, or LG, depending on the model series. For a timer or board replacement, you need to know the three-digit prefix in your model number.

The prefix 110 means Whirlpool-built. The prefix 417 means Electrolux-built. That prefix tells you which brand’s parts catalog to search, and getting this right before you order saves you from a return trip.

Amana, Roper, and Hotpoint Dryers

Amana and Roper timer parts are often interchangeable with Whirlpool-platform components because both brands are Whirlpool subsidiaries. Hotpoint uses GE-platform parts. In all three cases, confirm compatibility with your full model number before ordering.

Speed Queen Commercial Dryers

Speed Queen commercial dryer timers are built to a higher mechanical standard than typical residential units and usually last considerably longer. When a Speed Queen timer does fail, parts are available from Speed Queen-authorized distributors rather than general appliance parts suppliers.

Speed Queen timer failures most often result from worn cam contacts from heavy cycle use, not motor burnout, as you see with residential brands.

If you have an LG dryer instead, the control board's behavior is quite different from that of the brands covered above. Our LG washer and dryer troubleshooting guide goes into the specifics for that platform.

Gas vs. Electric Dryers: What’s Different

• How the timer works differently. In an electric dryer, the timer directly controls the heating element circuit. In a gas dryer, it controls the gas valve igniter circuit instead. The timer motor itself is usually identical across both types, but the wiring paths are different. Using the wrong wiring diagram for your dryer type is a common mistake that leads to bigger problems.

• Diagnosis differences. The multimeter test steps are the same for both gas and electric models. The key difference is safety. Gas dryer diagnosis requires shutting off the gas supply before opening any panel. Electric dryer diagnosis requires only unplugging the unit.

• Replacement cost differences. Timer parts cost roughly the same across both types, usually $30 to $100. Control board replacement tends to run higher on gas models with electronic ignition control, typically $150 to $350, compared to $80 to $250 for most electric models. If you’re thinking about upgrading instead of repairing, the EPA clothes dryer guidelines can help you compare energy-efficient options before you decide.

What Causes a Control Board to Burn Out? (Sacramento Homeowners, Take Note)

Power surges are the most common cause. A basic surge protector on the dryer outlet can help prevent this, and it’s an inexpensive precaution.

Restricted airflow from a clogged vent can also cause the board to overheat over time.

If you’re in Sacramento: During the months when temperatures regularly push past 100°F, SMUD’s electrical grid experiences increased load. Minor power fluctuations and brief brownouts during heat waves are a real and recurring cause of fried control boards in our area.

If your board failed during or right after a heat wave, that’s likely not a coincidence. A surge protector is a worthwhile investment before you install the replacement board.

Not Sure What’s Wrong? We Can Help

Sometimes you go through every step in a guide like this, and the dryer still isn’t right. That happens. Some problems need a trained eye in person, especially anything involving gas connections, burn damage, or repeated failures after replacing a part.

Fair Appliance Repair Service has been helping homeowners in Sacramento since 2020. Whether it's a dryer repair or a washing machine repair, our certified, licensed, and insured technicians work on all major brands., including GE, Whirlpool, Maytag, Kenmore, Amana, and Speed Queen. Every repair starts with a free diagnosis, so you know what needs fixing before any work begins. Same-day and next-day appointments are available.

Call us at 916-333-8388, and we’ll take it from there. Book your online schedule today!

Frequently Asked Questions

Q1: Can a bad timer stop the dryer from heating?

Yes. A timer stuck in a position that bypasses the heating circuit allows the drum to spin normally without heat. Test the timer motor with a multimeter before replacing the heating element.

Q2: How long does a dryer timer usually last?

Most mechanical timers last between 10 and 15 years under normal household use. Dryers running multiple loads every day may see earlier failure.

Q3: What usually causes a control board to burn out?

Power surges are the most common cause. In Sacramento, brief power fluctuations during summer heat waves are a leading local factor. A surge protector on the outlet can help. Restricted airflow from a clogged vent can also cause the board to overheat gradually.

Q4: Can I clean the moisture sensor bars myself?

Yes. Use a cloth with a little rubbing alcohol and wipe both metal strips inside the drum. Dryer sheet residue builds up on these bars, causing the dryer to stop before the clothes are fully dry.

Q5: Why does my dryer timer jump or skip instead of advancing smoothly?

The cam contacts inside the timer have worn unevenly. The timer steps in irregular jumps instead of a smooth progression. A new timer assembly is the only reliable fix.

Q6: My display shows an error code, but the board looks fine. Where do I start?

Start with the door switch and moisture sensor. These two components account for most error codes that appear to be board failures, and both cost much less to replace than a control board.

Q7: Is it worth repairing a dryer that’s more than 10 years old?

It depends on the repair cost and the dryer’s overall condition. If the part costs less than a third of what a new dryer would cost and the rest of the machine is running well, the repair usually makes sense.
